CARGO HOOK | P/N: IS10-100
Certaines images ne sont pas contractuelles, utilisez le numéro de pièce pour commander.

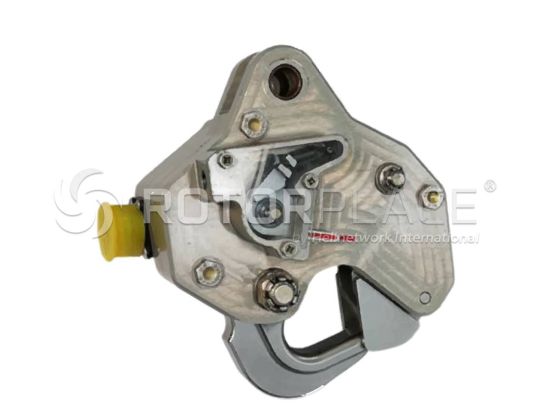

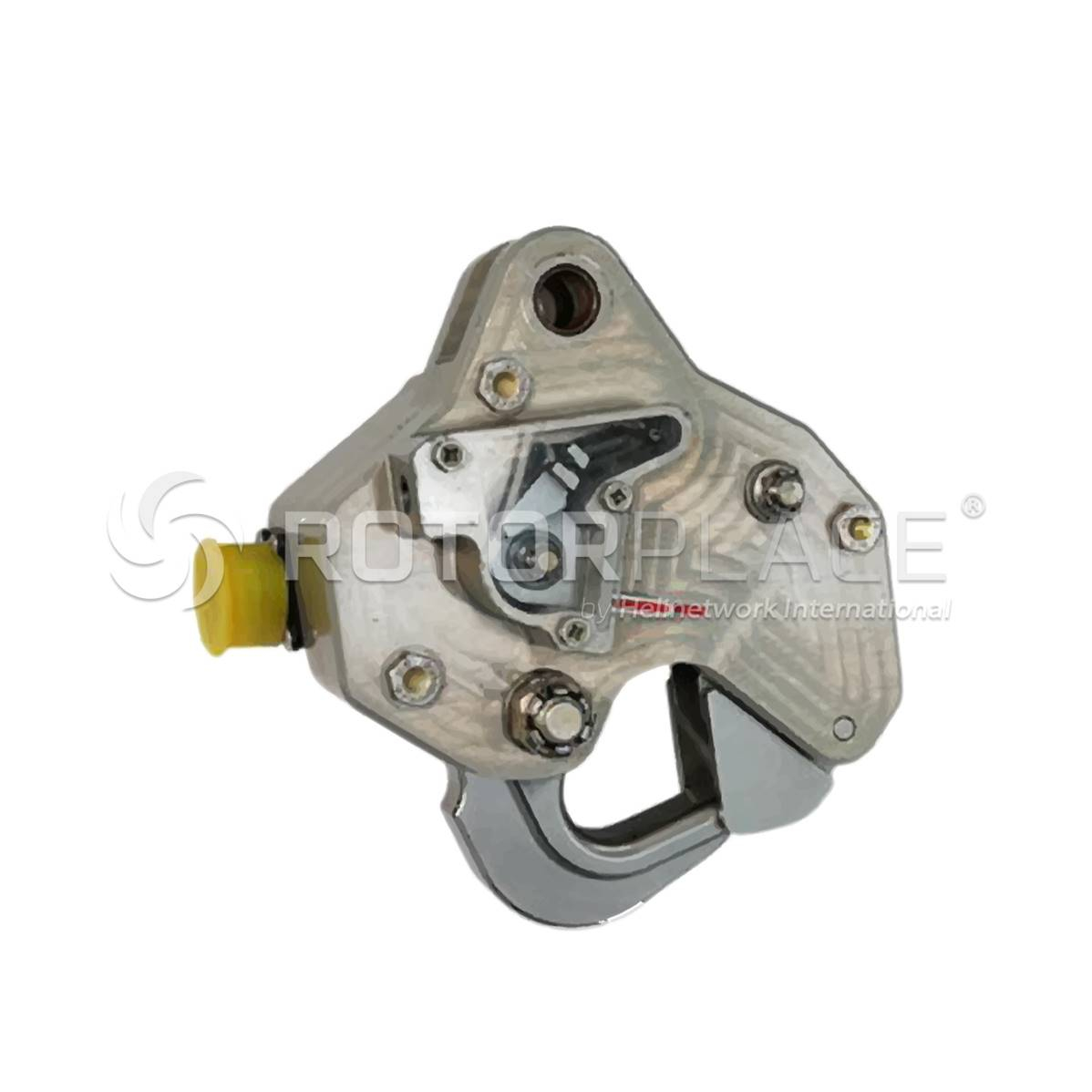

CARGO HOOK

P/N: IS10-100-N

CONDITION :

new mro oh

The cargo hook IS10-100 is designed for sling load transport missions by helicopter. It is approved under STC on: AS350B3/ H125 B3. It can carry a maximum load of 1700Kg/ 3740 Lb under the helicopter.
Delivered with Certificate of Conformity, log card and EASA FORM ONE

Dimensions: 166 h X 139 l x 110,9 w mm| Weight: 2.2+/- 0.2 kg

Overhaul: Every 5 years or 2000 drops in authorized repair station | Warranty :  24 months for new product, 12 months after repair or overhaul | Storage : 5 years in weatherproof environment, 2 years after overhaul

Useful load: 1700 kg | Minimum  Release load: 3kg | Indicator: Loaded control | Loading: Manual | Normal Control: Electrical | Emergency Control: Mechanical by flexible cable Manual on ground | Ambient operanting temperature: -45°c to + 70°c  (-49°F to 158°F) |Power supply: 22 to 32 V DC | Consumption (during electrical release): 11 A with 32 V | Electrical connection to the helicopter wiring via series connector ( 8525-10R14B12PNH)

Voir le prix
Connexion / Inscription

État

Disponibilité Sur demande
