Certaines images ne sont pas contractuelles, utilisez le numéro de pièce pour commander.

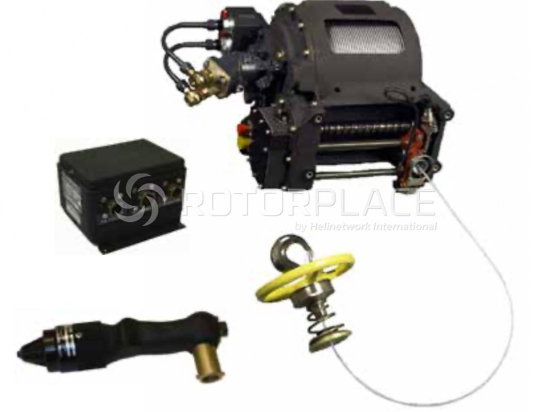

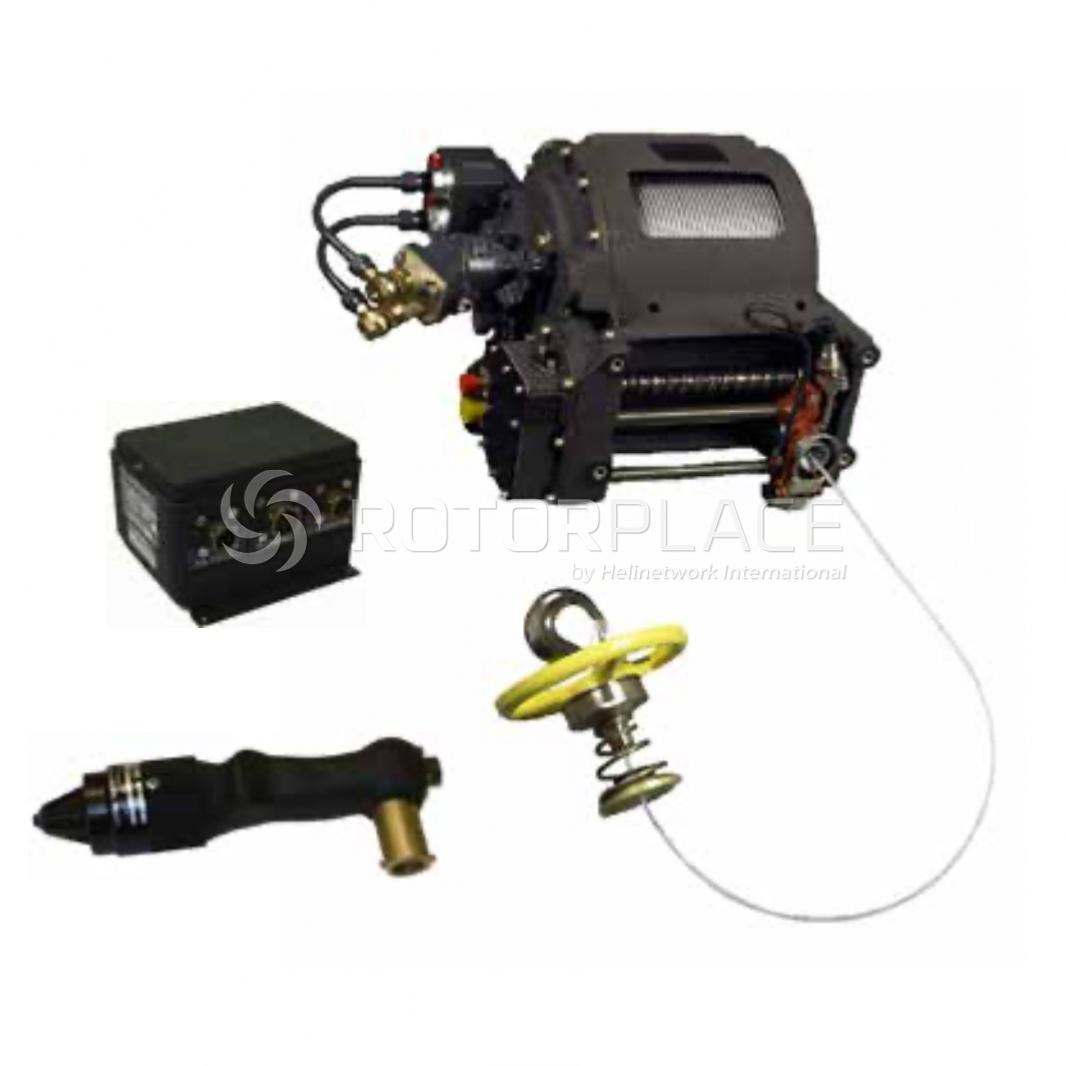

HYDRAULIC HOIST
P/N: 76368-240-D-N
CONDITION :
Available : 🗸 new
Prices and delivery times will be confirmed after the expertise by the workshop.
Rotorplace is in parternship with Part 145 approved workshops to guarantee reliable and quality services.
UTC Aerospace Systems rescue hoists offer superior performance, reliability and capability as well as low cost of ownership to helicopter operators worldwide.
Current applications include Eurocopter AS332, AS532, EC225, EC725, SA321 and SA330.
Height: 21 in. (53.4 cm). Width : 10.6 in. (27 cm). Hoist Length : 19.9 in. (50.6 cm). Hoist Weight : 71.65 lb. (32.5 kg).
#Design Features# Redundant limit and decel switches, Electrical harness protected against EMI, Emergency cable cut, Self-clamping carbon brake, Simple, reliable guiding cable device, Hydraulic drive module including a constant stroke hydraulic motor, a servo valve controlling speed variation and a control block fitted with flow regulators
System Weight : 74.96 lb. (34 kg) Cable Length (usable) : 246 ft. (75 m) Hoist Type : External hydraulic hoist Cable Type : Galvanized steel Hoisting Cable Speed : Up to 178 ft. per minute (0.90 m/s) Supply Pressure : 2500 psi. (175 bar) Control Power : Electric 28 VDC Rate Flow : 5.3 gal. per minute (20 L/min). Maximum Lift Load : 600 lb. (272 kg). Limit Load : 1500 lb. (667 daN) Ultimate Load : 2250 lb. (1001 daN)
